Gigabit Ethernet MAC IP Core

The silicon-proven Gigabit Ethernet IP core provides a 10/100 Mbps Media Independent Interface (MII) and a 1000 Mbps Gigabit Media Independent Interface (GMII). It also supports optional Reduced MII (RGMII), and Serial GMII (SGMII).  The Gigabit Ethernet core is designed for SoC and mobile applications such as integrated networking devices, PCI-Express Ethernet controllers, and Ethernet adapter cards. The Gigabit Ethernet Core IP supports half-duplex mode at 10/100 Mbps and full-duplex mode at 10/100/1000 Mbps.

The Gigabit Ethernet MAC IP core consists of two configurable FIFOs on both transmit and receive sides to handle the application’s latency during frame transmission and reception. A processor bus master and a 32-bit scatter-gather DMA transfer packets between the internal FIFOs and the host memory to enhance system performance.

IEEE 802.3 Compliant Core

The Arasan Gigabit Ethernet MACMedia Access Controller IP is compliant with the Ethernet IEEE 802.3-2008 standard.  The Gigabit Ethernet core supports 4-bit MII based 10/100 Mbps PHY and 8-bit GMII based 10/100/1000 Mbps PHY. A MDIO/MDC (Management Data Input/Output and Management Data Clock) management interface provides control and management functions to external PHY devices.

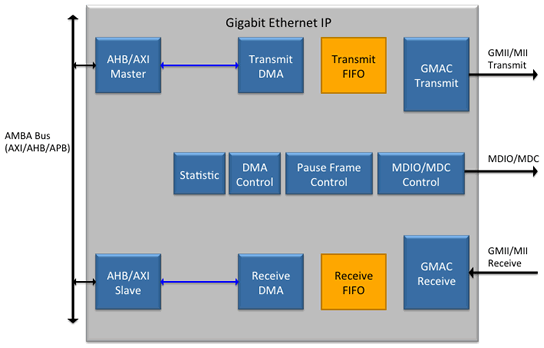

Diagram

Gigabit Ethernet MAC IP Core

Features

  • Hardware Assisted 1588 V1/V2 Support
  • Full-duplex mode at 10/100/1000 Mbps
  • Half-duplex mode at 10/100 Mbps
  • Supports IEEE 802.3-2008 compliant MII, RMII, SMII, GMII, RGMII, and SGMII
  • Independent 32-bit scatter-gather DMA with big/ little endian operation
  • Optional VLAN Q-Tag frame support
  • CSMA/CD Protocol for half-duplex mode
  • PAUSE frame based flow control in full-duplex mode
  • MDIO/MDC management interface
  • 802.3 compliant MIB, SNMP, RMON management support
  • Configurable transmit and receive FIFOs
  • Supports Jumbo frames
  • Supports magic packet and Wake-Up frames
  • Optional AXI, AHB, PCIe, PCI or custom bus interface
  • Variable length Inter Frame Gap (IFG) on back to back frame transmission
  • Variable length (3, 5, 7 bytes) preamble generation
  • Automatic generation of FCS and PAD
  • Option to disable PAD or CRC32
  • Option to stop frame retransmission on collisions
  • TimeStamps the specified PTP Packets for implementing 1588 Protocol.
  • Inter Frame Gap checking
  • Preamble detection and stripping
  • Flexible address filtering modes and inverse address filtering
  • 64-bit hash table to filter multicast addresses
  • Promiscuous mode of operation
  • Reception of broadcast frames
  • Automatic checking the FCS field, runt frames, and data field length
  • Detection of MaxFrameLen frames, receive errors
  • 32-bit status information on each receive frame
  • Identifies PTP Frames (both V1 and/or V2) in L2/ L4 Encapsulation and TimeStamps for implementing 1588 Protocol.
  • Software controlled PAUSE control frame generation including multicast and unicast address
  • Automatic detection and checking of PAUSE frames

Deliverables

  • RMM Compliant Synthesizable RTL design in Verilog
  • Easy-to-use test environment
  • Synthesis scripts
  • Technical documents

Benefits

  • Fully compliant core
  • Premier direct support from Arasan IP core designers
  • Easy-to-use industry standard test environment
  • Unencrypted source code allows easy implementation
  • Reuse Methodology Manual guidelines (RMM) compliant verilog code ensured using Spyglass
