The High Speed Synchronous Serial Interface (HSI) Controller is used to provide high bandwidth, point-to-point, serial communication between two peers, like the cellular modem and application processor on a mobile platform, such as a smartphone or a tablet. The Arasan HSI Controller IP is designed to provide MIPI HSI 1.00 compliant connectivity to a SoC.
Three variations of the IP are currently available with support for AHB, AXI or OCP system buses. The HSI Controller’s internal registers are accessible through programmed IO transactions, in which case the IP functions as a bus slave. All data transfers between the SoC’s system memory and HSI interface happen either in PIO mode or in DMA mode as programmed by the driver/firmware.
All data received from system memory is held in the transmit FIFO and output as serial data over the HSI physical interface. Conversely, all serial data received from the HSI interface is captured in the receive FIFO before it is sent to the system memory. The FIFO’s and their associated logic can be structured with up to 8 logical channels, each with configurable depth.

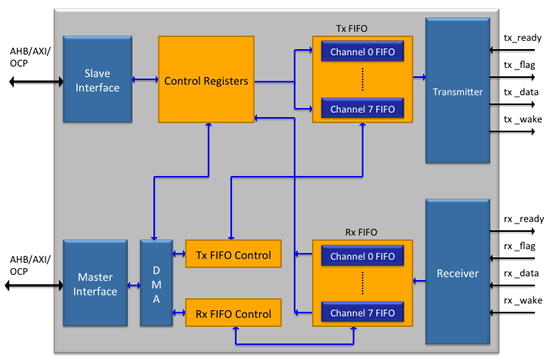

Diagram
Features
Compliant with MIPI HSI Specification version 1.0, and Physical Layer version 1.01.00
Delivered in Reuse Methodology Manual (RMM) compliant Verilog RTL format
Small footprint
Full Duplex High Speed Serial Interface between two peer devices
HSI clock frequency range from 1MHz to 200 MHz
Maximum bandwidth of 200 Mbps in both Transmit and Receive directions
Programmable transmission bit rate
Supports 1 to 8 logical channels for both Transmit and Receive
Configurable FIFO depth for each channel
Runtime configuration of channel id
Arbitration for multi-channel transmits
Supports all three Receive data flows defined in the standard
Synchronized, Pipelined and Real-time
Supports Stream and Frame modes for data Transmission
32 bit AHB, AXI or OCP Interface to CPU/Memory sub-system
System Clock frequency range from 30 to 200 MHz
Master Interface used for DMA read/writes with main memory
AXI/OCP Master supports 8 outstanding requests
Separate Slave Interface used for register access
Deliverables
Verilog HDL of the IP Core
Synthesis scripts
Verification environment
User guides for design and verification
Benefits
Fully compliant to MIPI standard
Small footprint
Code validated with Spyglass
Functionality ensured with comprehensive verification
Product quality proven with silicon
Premier direct support from Arasan IP core designers
