I3C HCI Host Controller

The MIPI I3C Host IP interface is an evolutionary standard that improves upon the features of I2C while maintaining backward compatibility. This standard offers a flexible multi-drop interface between the host processor and peripheral sensors to support the growing usage of sensors in embedded systems.

The main purpose of MIPI I3C is threefold:

To standardize sensor communication
Reduce the number of physical pins used in sensor system integration and
Support low-power, high-speed, and other critical features that are currently covered by I2C and SPI.

Arasan has participated in multiple MIPI I3C Interop Workshops to ensure compliance of it’s I3C Host IP, Device IP, I3C Software and HDK

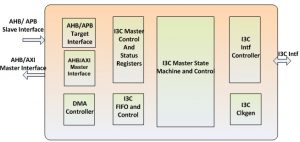

Features

Compliant with MIPI I3C Specification V1.0
Compliant with MIPI I3C HCI Specification V1.0
Supports up to 12.5 MHz operation using Push-Pull
Open-Drain and Push-pull type transactions (as required)
Supports legacy I2C devices
Dynamic Addressing while supporting Static Addressing for Legacy I2C devices
Legacy I2C Messaging
I2C-like Single Data Rate Messaging (SDR)
Optional High Data Rate Messaging Modes (HDR)
Support for Multi-host (transferring the ownership of the bus to a Secondary Host if Present)
Reception of In-band Interrupt Support from the I3C devices
Reception of Hot-Join from newly added I3C devices
Synchronous Timing Support and Asynchronous Time Stamping.
APB/AHB Target Interface for Configuring/Controlling the IP with Interrupt output
Small 16-byte (Configurable) FIFO for transferring data between Master and the Slave devices
Independent Clocks for AHB and the I3C Interface

Deliverables

RMM compliant synthesizable RTL design in Verilog
Easy-to-use test environment
Synthesis scripts
Technical documents
Validated with 3^rd Party UVM-based Slave VIP and available as an additional option
