MIPI SoundWire®Slave Controller, typically integrated into audio DSP/Codecs or directly into audio peripherals such as Microphones and Amplifiers used in smart phones, tablets and mobile PCs. The IP when integrated provides SoundWire, a new audio interface to connect to Master typically embedded in Application Processor or Audio Codecs.
MIPI SoundWire Slave Controller 1.2
Features
- Compliant with MIPI SoundWire specification version 1.2
- Configurable number of Data Ports – 1-14
- BRA Support over Data Port 0
- Supports full address range using Address Paging registers
- Supports accesses to registers implemented external to the IP
- Configurable Direction – Source or Sink
- Supports ClockStop Modes
- Implements High PHY support

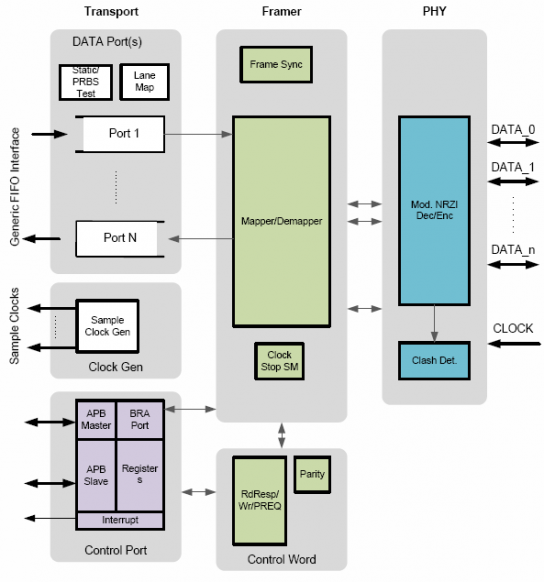

- Implements all three layers and provides a simple application interface
- PHY
- Framer
- Transport (Data and Control Ports)
- Application Interface
