This is a production-ready software stack for Arasan’s SD 3.0/ SDIO 3.0/ eMMC 4.51 Host Controller IP that is used to connect to SD, SDIO, or eMMC devices.
The SD 3.0/eMMC 4.51 stack can also be used for validating a device during its development and integration life cycles thereby helping designers to reduce the time to market for their product. The modular neX+ stack is architected to be OS and platform independent which eases porting effort. It has a thin OS and hardware abstraction layer making it highly portable. The neX+ stack provides a generic API set to access, control and configure the bus driver, host controller driver and the underlying hardware.
The SD 3.0/eMMC 4.51 software stack includes functions for initialization, sending of commands, data transfer, power management, SDIO interrupt handling, bus configuration, client driver matching, host controller hardware configuration and shutdown. The neX+ stack can support a single host controller with multiple slots or multiple host controllers with multiple slots. The SD 3.0/eMMC 4.51 software stack complies with the latest SD, MMC and SDIO standards. It supports SD and eMMC cards with the option for a device to boot directly from these cards using the boot mode feature.

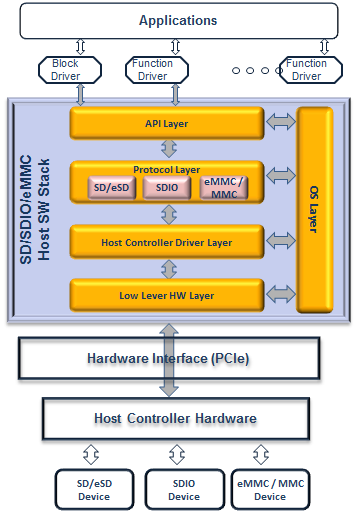

Diagram
Features
Compliant with
SD Host Controller Specification v3.0,
SD Memory Specification v3.0,
SDIO Specification v3.0,
eSD Specification v2.1
eMMC specification Version 4.51,
MMC Specification v4.3
Multiple host controllers support
Multiple slots per host controller
1bit, 4bit SD modes
1 bit, 4bit and 8 bit MMC modes
High speed mode up to 208MHz SD host clock
High Capacity Class 2, 4 and 6 SD cards
MMCplus and MMCmobile cards
Non DMA, Single operation DMA and ADMA modes
Supports byte and block mode transfers
Card auto detection (Insertion / removal)
Card bounce condition handling
eSD and eMMC cards boot mode support API Interface
Generic API interface abstracting protocol specific details
Non-blocking data transfer APIs
Development Environment
Linux / Fedora 13 kernel version 2.6.xx
x86 PC
Arasan SD3/SDIO3/eMMC4.51 Host Controller
{tab Deliverables}
Full software stack – source code in C
API Guide
User’s Manual
Sample block driver
Sample SDIO-UART application
Release Notes
Deliverables
Full software stack – source code in C
API Guide
User’s Manual
Sample block driver
Sample SDIO-UART application
Release Notes
Applications
SDIO-WiFi, SDIO-BlueTooth, SDIO-UART to an embedded or x86 based platform
Validate a SDIO device during development and integration
Integrate support for SD / MMC cards and their advanced versions to an embedded platform
Benefits
Developed in ANSI C
OS and platform agnostic stack Portable – independent HW and OS layers
Easy-to-use interface for application development
Fully documented API
Production ready block driver
Premier direct support from Arasan engineering team
